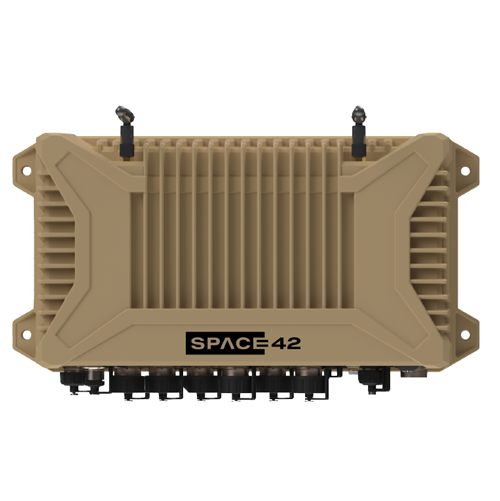

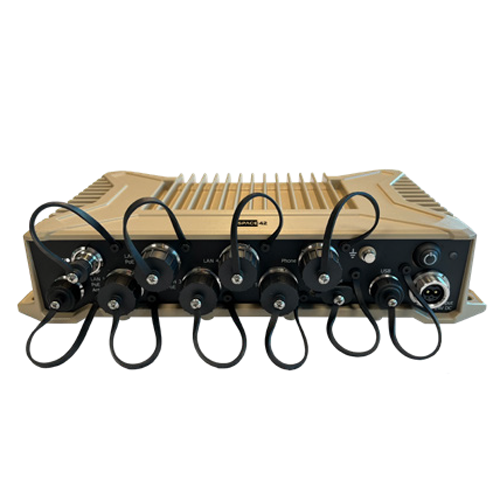

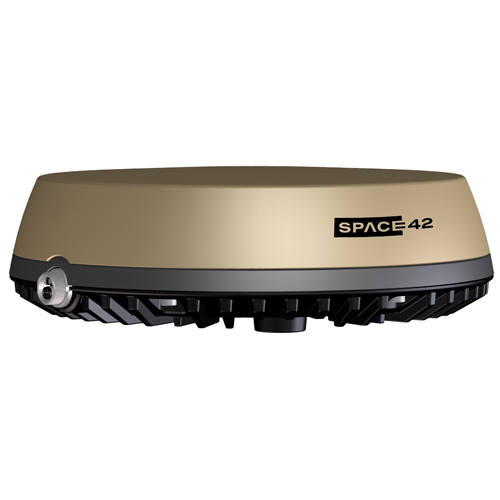

The Thuraya Commander Neo Terminal + the Mobile Gateway NEO M is purpose-built for military and governmental operations requiring reliable mobile communications. Delivering seamless high-speed voice and data from vehicles, trains, and remote platforms, this terminal ensures your teams stay connected on every mission. Its compact, rugged design features no moving parts—engineered for uncompromising durability in extreme environments. Deploy secure communications infrastructure in minutes, transforming any vehicle into a command center. Mission-critical reliability you can depend on, wherever your operations demand it.
The Thuraya Commander Neo Terminal + Mobile Gateway NEO M transforms your satellite communications infrastructure into a versatile multi-user hub. Engineered for mission-critical operations, this system delivers robust voice, data, and PTT capabilities with military-grade durability designed to withstand demanding environments across land, sea, and mobile deployments. Built on a high-performance platform, it integrates advanced encryption, video compression, and intelligent applications to support your most challenging operational requirements. Experience reliable, secure connectivity optimized specifically for satellite conditions—wherever your mission takes you.
With support for VoIP, video conferencing, real-time monitoring, and advanced applications, the Neo C IP Terminal empowers organizations to stay connected, coordinate effectively, and maintain operational continuity in remote or disaster-affected regions. Rugged, reliable, and easy to deploy, it is the ultimate solution for professional satellite broadband over the Thuraya network.
Specifications
Dimensions:
Height:
Width:
11.7 cm (with 3 cm spacers)
Ø 32.1 cm
Weight: 4.8 kg
Data Capabilities
> 5° elevation: Up to 1024 kbps (Rx / Tx)
Voice Standard VoIP
Embedded SIP Server
PPT Push-To-Talk with Mobile
Neo M
Frequency Range:
Tx (MHz)
Rx (MHz)
1626.5 - 1660.5 and 1668 - 1675
1518.0 - 1559.0
Frequency Range: GPS, Galileo, Beidou, Glonass
Languages: EN, AR, FR, DE, ES, RU, JP, CN
Approval: CE, RED, RoHS, WEEE,
FCC, UL, RCM
Thuraya Type Approval
Environmental conditions
Temperature
Operational:
Storage:
-25°C to +55°C (ambient)
-40°C to +85°C
Water and dust: IP68
MIL-STD-810G: Method 503.6 (Temperature shock)
Method 505.6 (Solar Radiation)
Method 506.6 (Rain)
Method 507.6 (Humidity)
Method 509.6 (Salt Fog)
Method 510.6 (Sand and Dust)
Method 512.6 (Immersion)
Method 516.7 (Drop)
Method 524.1 (Freeze/Thaw)
EMI/EMC: MIL-STD-461H
Power
DC input range: 12 - 24 VDC (Max. 10.8 to 32 VDC)
Power (max): 70W (@10.5 - 32V)
Interfaces
WLAN Access Point: 802.11 b/g/n/ac
Ethernet: 10 / 100 / 1000 Mbps
Combined DC power and Ethernet connector:
Combined connector providing DC power input,
ignition and Ethernet (PoE 802.3bt Type 3)
connectivity.
User interface:
One LED (Status), Web Interface,
Reset Button, SIM card connector
Other features
Space42 Connect App:
Turns a Smartphone into a Satphone.
Available for Android / IOS.
Set-up and Router Functionality:
Webserver, NAT Router, Admin control
(password protected), DHCP, Network Management,
Remote Management, PPPoE
Package
• Commander NEO Terminal with 3cm spacers
• Quick Start Guide
• 6m hybrid DC power and Ethernet cable (open-ended)
Accessories
• Connection Box for NEO
• PoE Cable Connection cable (Cat5e), 6m
• PoE Cable Connection cable (Cat5e), 15m open-ended
• PoE Cable Connection cable (Cat5e), 25m open-ended
• PoE Cable Connection cable (Cat5e), 50m open-ended
• Hybrid DC/ethernet connection cable (6m open-ended)
• Hybrid DC/ethernet connection cable (25m open-ended)
• Magnetic Mount Kit
